50A brushed electric wheelchair robot scooter joystick controller with electromagnetic brake with USB pps-18

$115.00
In stock
SKU
pps-18

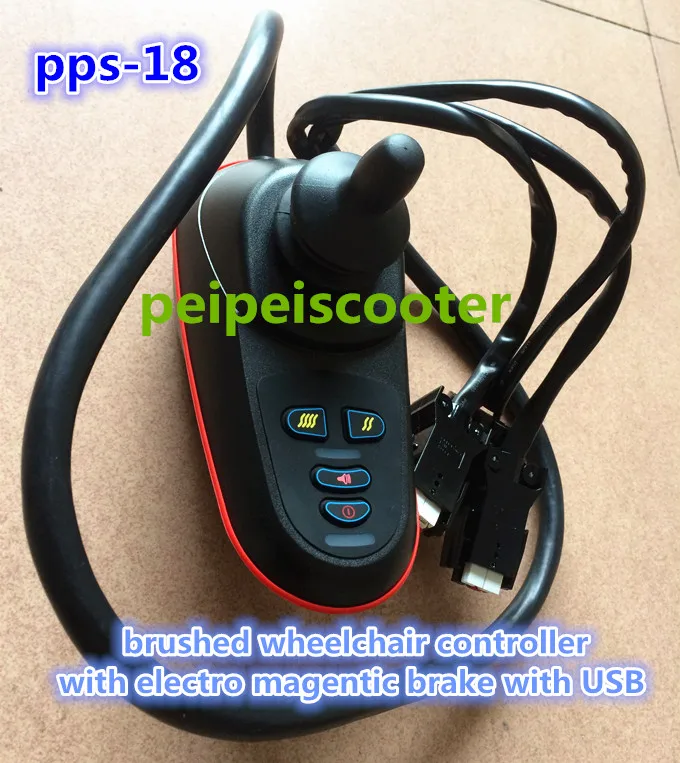

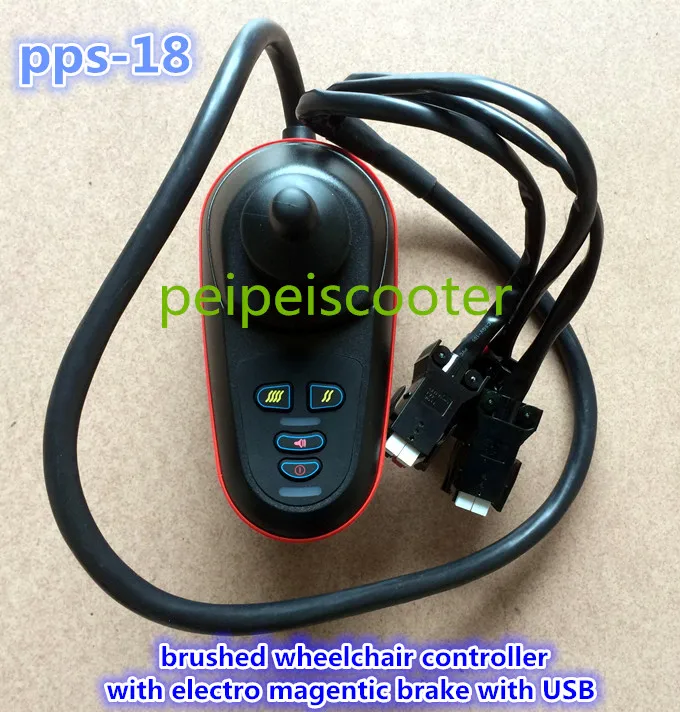

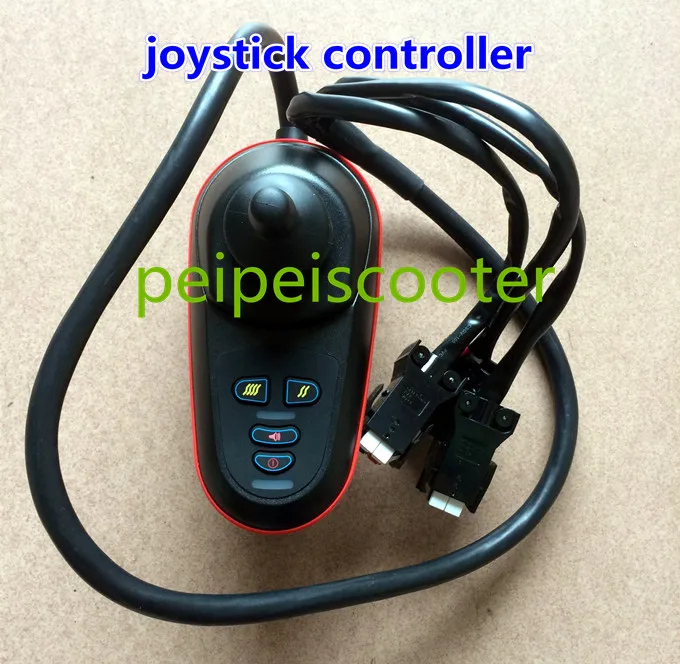

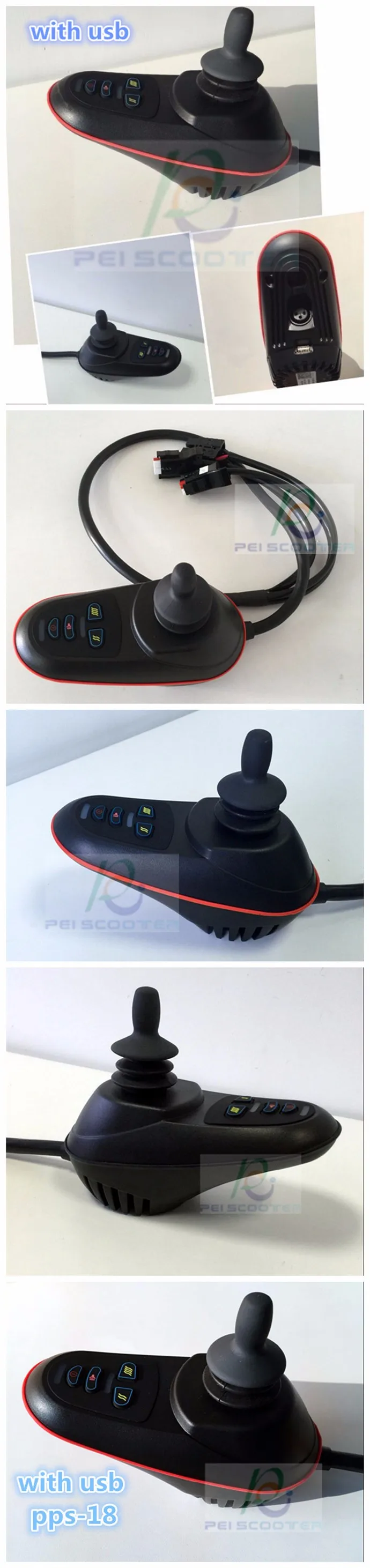

50A brushed electric wheelchair scooter joystick controller with electromagnetic brake with USB

50A brushed electric wheelchair robot scooter joystick controller

with electromagnetic brake with USB

Model:pps-18

Power voltage:DC24V

Working voltage:DC18V-30V

Max voltage:DC36V

PWM frequency:20KHZ

Brake voltage:DC24V

Brake current:max: 5A  minimun:0.1A (single)

Max charging current:6A

Max working current:50A-60A

Use environment temperature:-25------ +50

Storage temperature:-40------ +65

Free shipping,The transport way will be decided by seller.

EMC test:

         Magnetic susceptibility:in the 30v/m EN12184 and in accordance with ANSI/RESNA requirements

         Electro magnetic radiatio:according to the EN55022 B

         ESD:IEC801 the second part ESD:IEC801

Contains inverse electro magnetic brake function,The brake circuit automatic detection function.

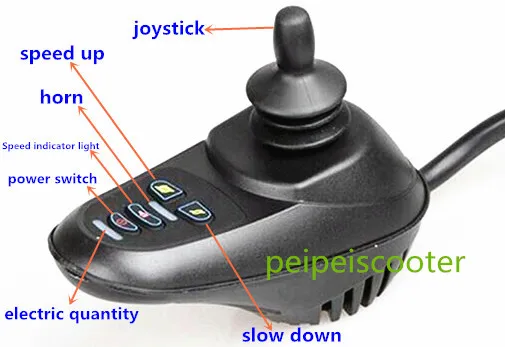

This is a creative and fashion design electric wheelchairs intelligent controller.Let the user smoothly
and follow one's inclinations through the control panel and joystick to manipulate wheelchair in 360
degrees movementing in any directions.The control system adopted by the programmable computer
 chips as the center of the brushless dc motor to drive two only at different speed or direction, in order
to achieve to any direction of movement, let users really feel perfect with the power of finger .The
operation of the intelligent controller is very simple,easy to grasp.
QQ20170913154608
QQ20170913154611
QQ20170913154614
QQ20170913154604
QQ20170913154620
QQ20170913154623
QQ20170913154627
QQ20170913154601
1
2
4
3
pp
QQ20170812122030
QQ20170912104415
