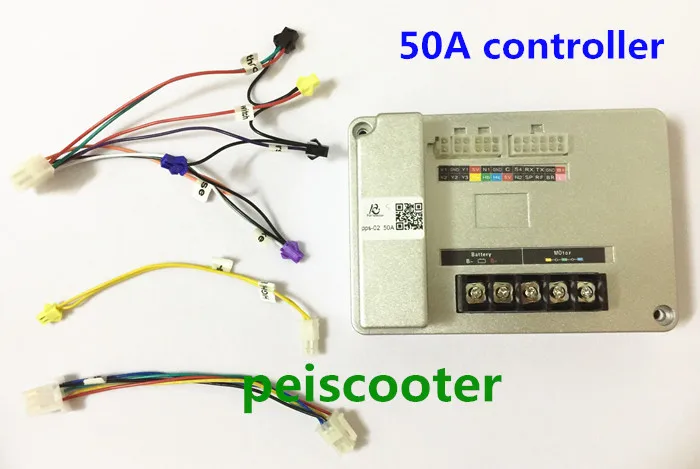

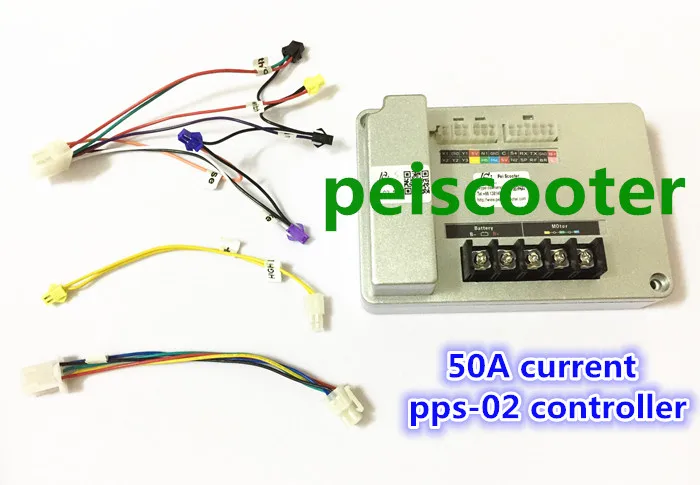

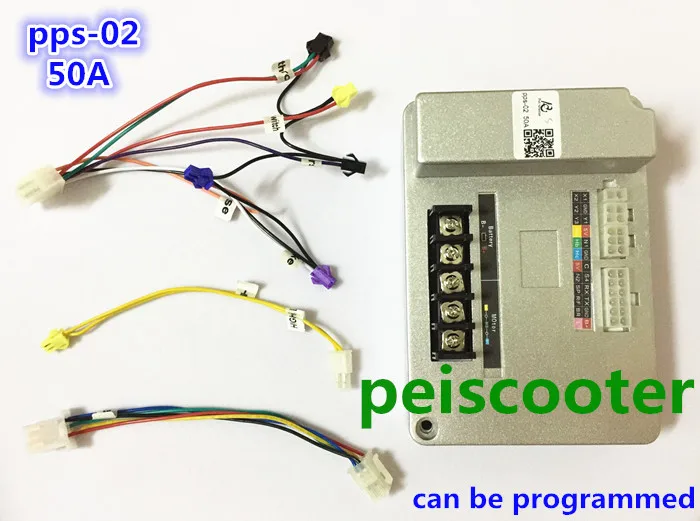

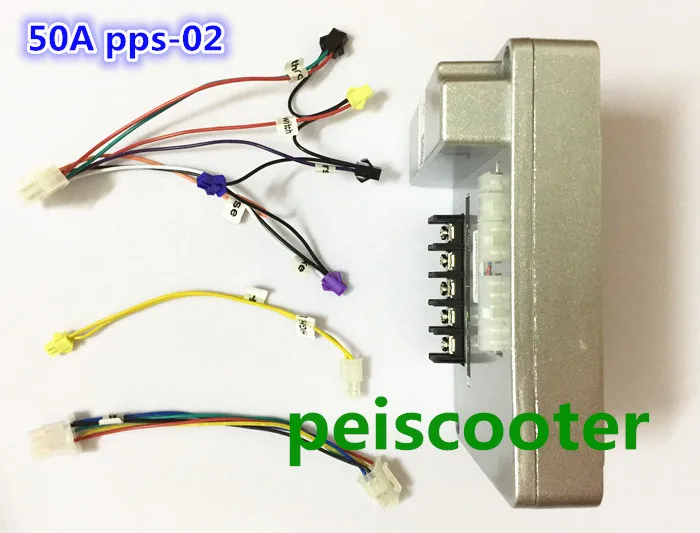

50A intelligent brushless dc scooter motor controller
This can be programmed by our software,need buy our programmed cable
with back current brake function
Model:pps-02
Style:brushless motor controller
It can DIY design,including reverse,cruise,and every speed and so on.
Current also can be set,Maximum continuous current:50A
Optional voltage:24v/36v/48v/60v (All can be customized)

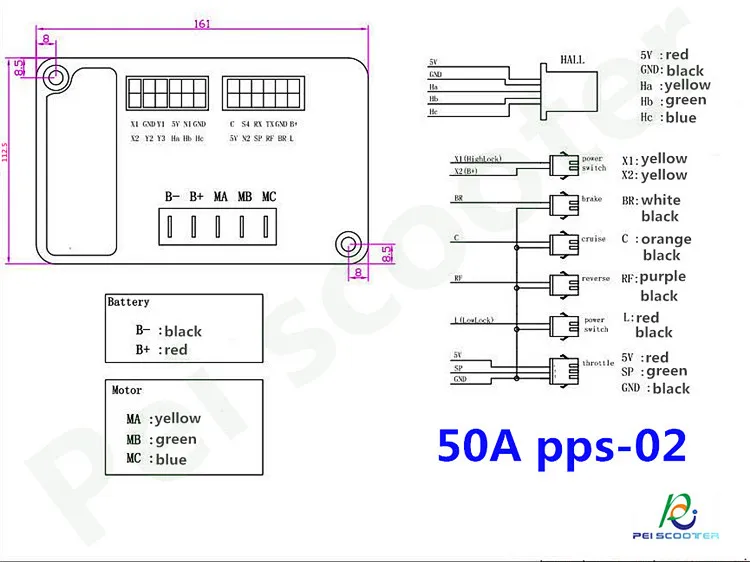

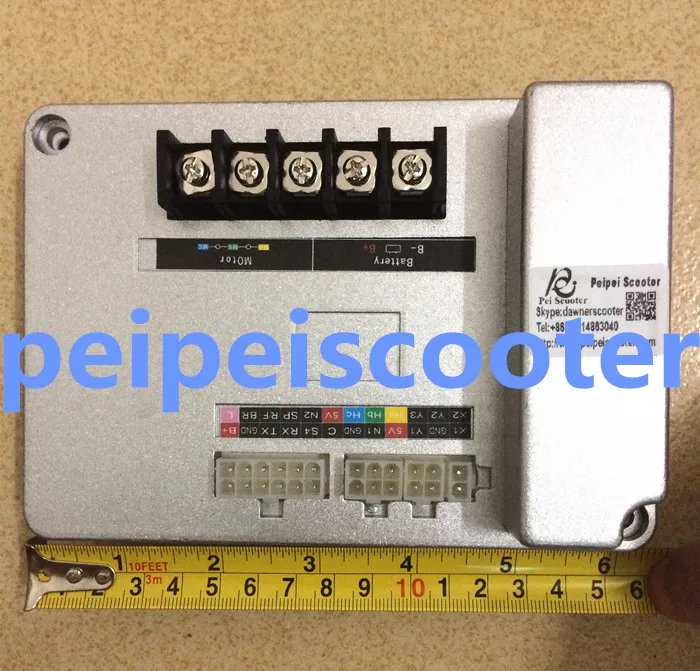

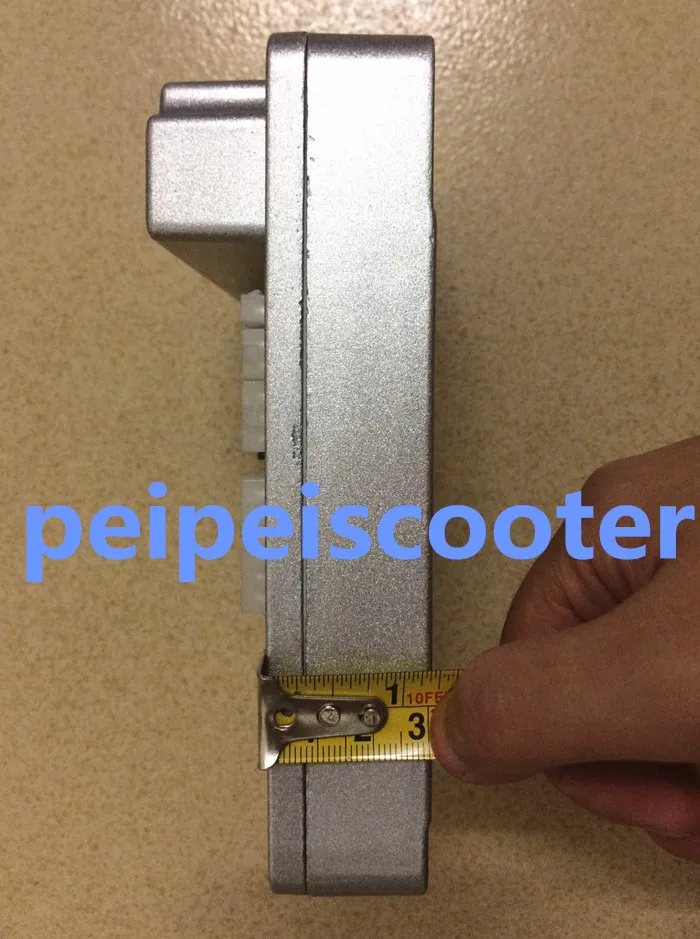

L*W*H:16cm*11cm*3cm
This is brushless motor intelligent cotroller.

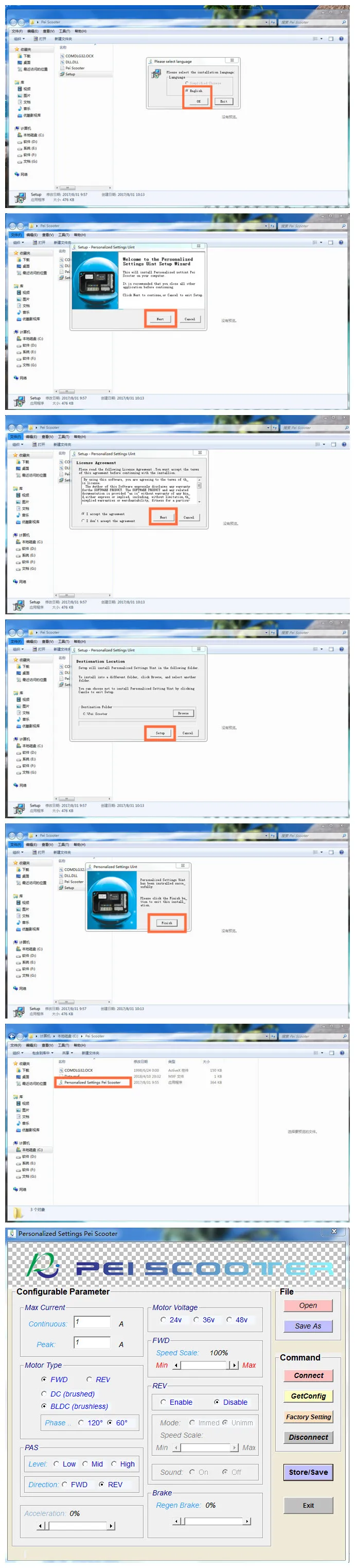

The parameters can be programmed.

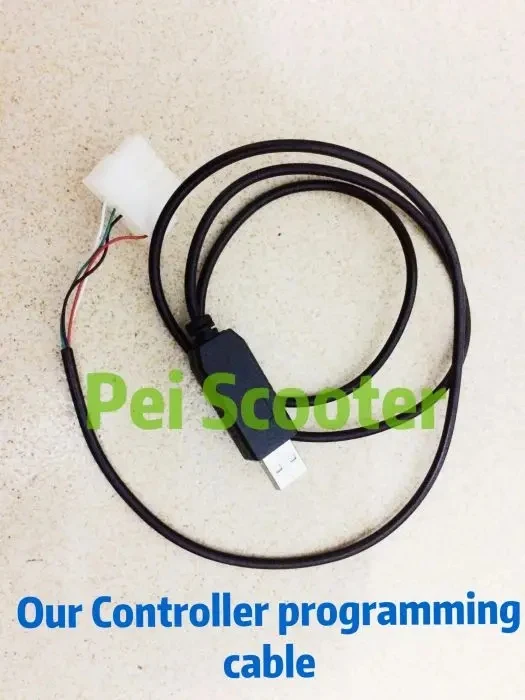

It need our programming cable,Please purchase it separately.
(The maximum speed of the motor,acceleration,deceleration,brake time,voltage,continuous current.phase angle of motor)
The working voltage of the brushless motor cotroller is 17V-60V.
Maximum continuous current can be reach to 50A.
It would match with any brushless motor that under 2500W.
This controller can work with most of our brushless wheel hub motors!













If want to programe the controller,please buy our programming cable.

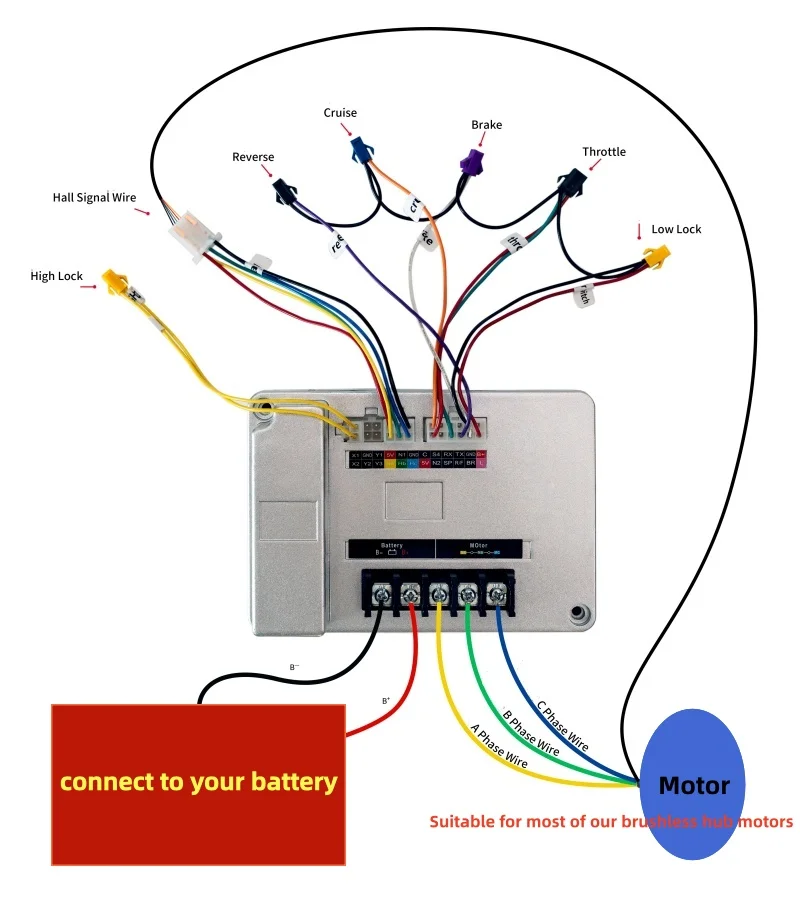

The installation process is as follows.
