13 inch 13*5.0-6 Tires brushless non-gear scooter hub motor rear drive and structural support and front wheels phub-13ns

Scooter Configuration Main Component

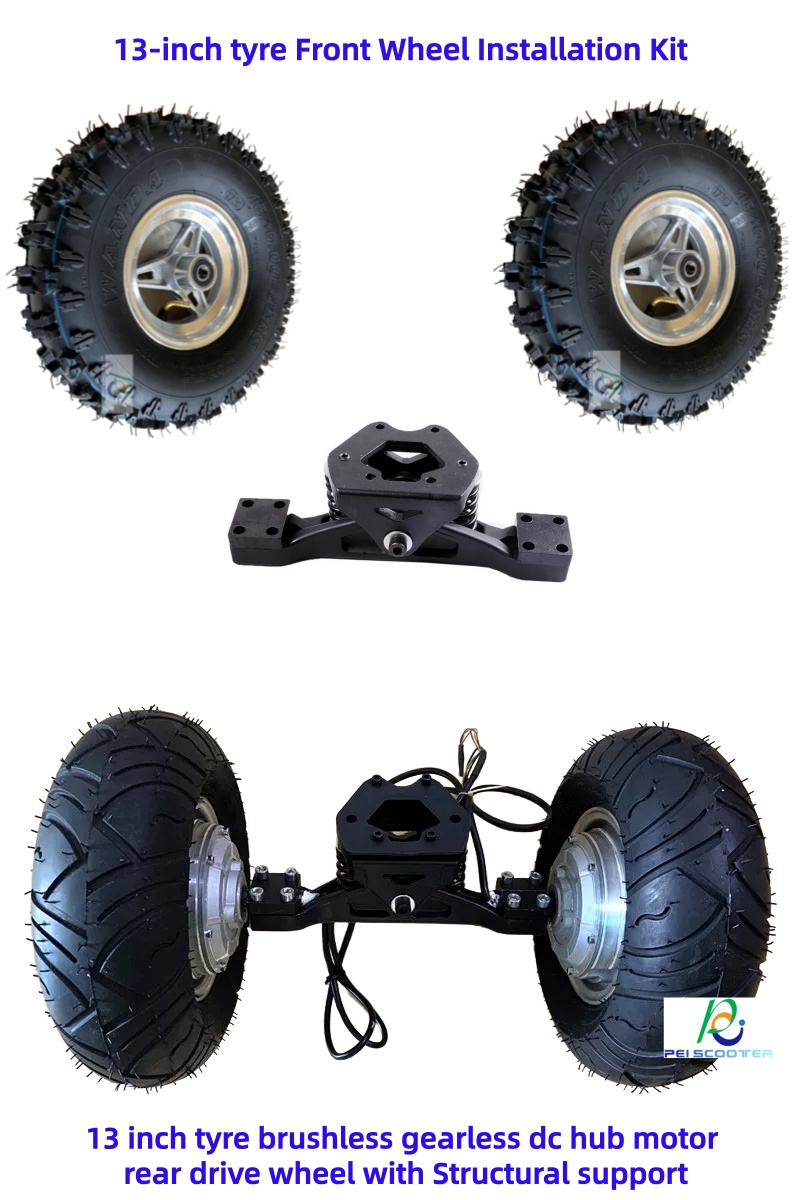

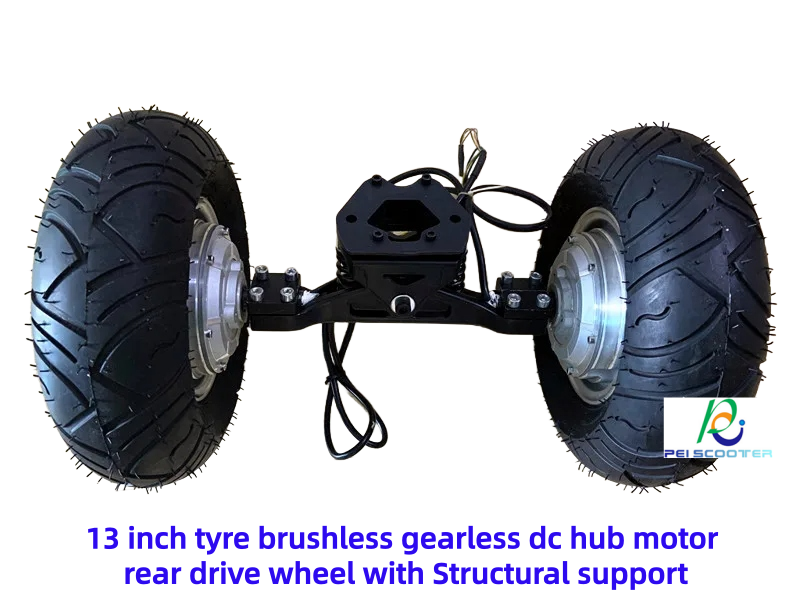

13 inch 13*5.0-6 Tires brushless non-gear scooter hub motor rear drive and structural support and front wheels

Model:phub-13ns

Tire:13*5.0-6(two kinds,select one)

Weight of each motor: 7kg

Rear wheels total weight: 14kgs

Weight of each front wheel: 3.5kg

Front wheels total weight: 8kgs

Votage:24v,36v,48v

Power:800w*2,350w*2,500w*2

the motor can fit disc brake

Length including wheels: 500 mm

Length no-including wheels: 260 mm

Detail size are showed in these pictures
