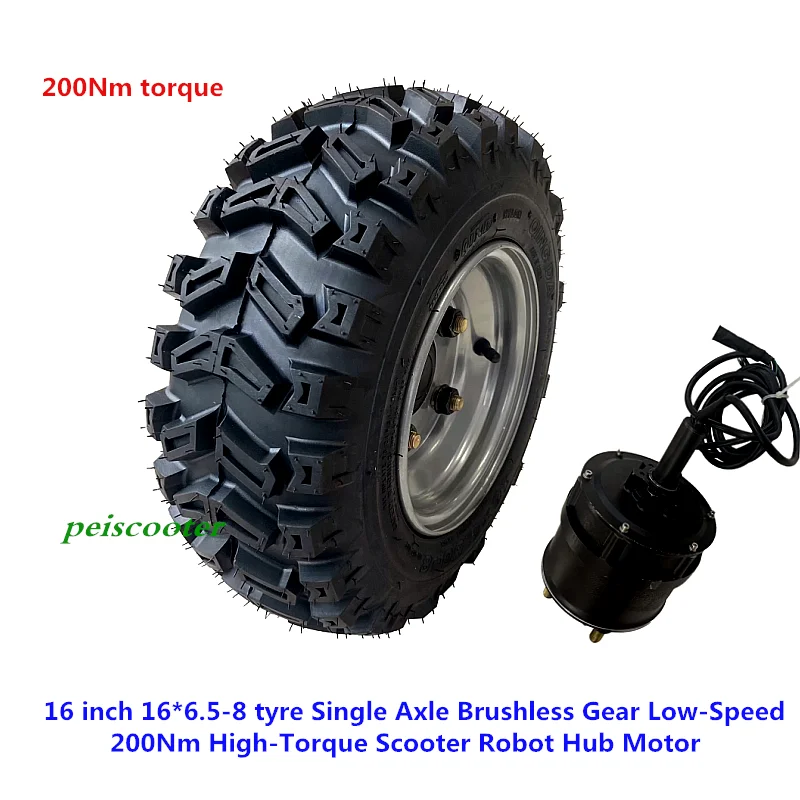

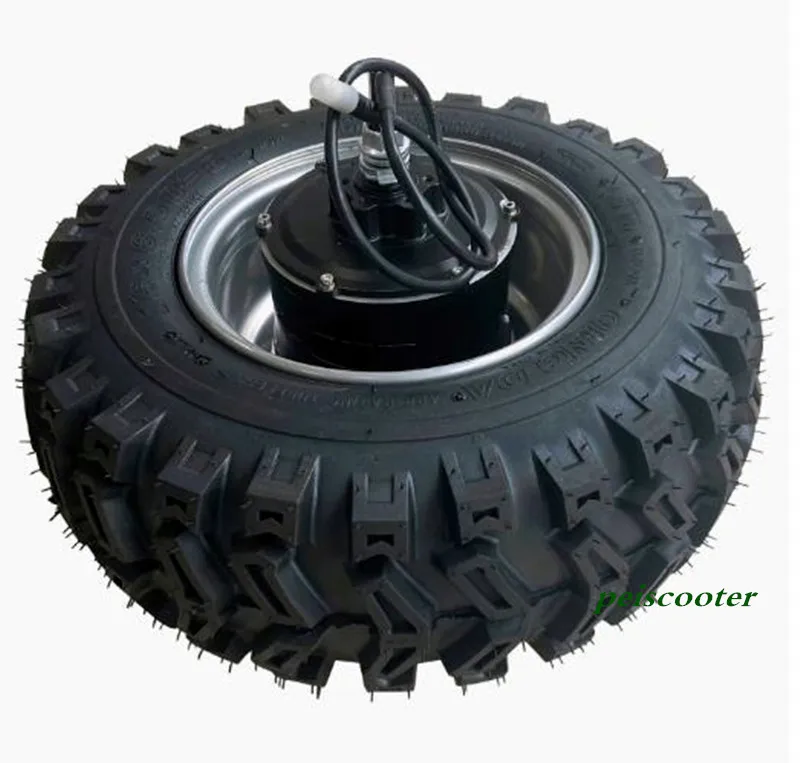

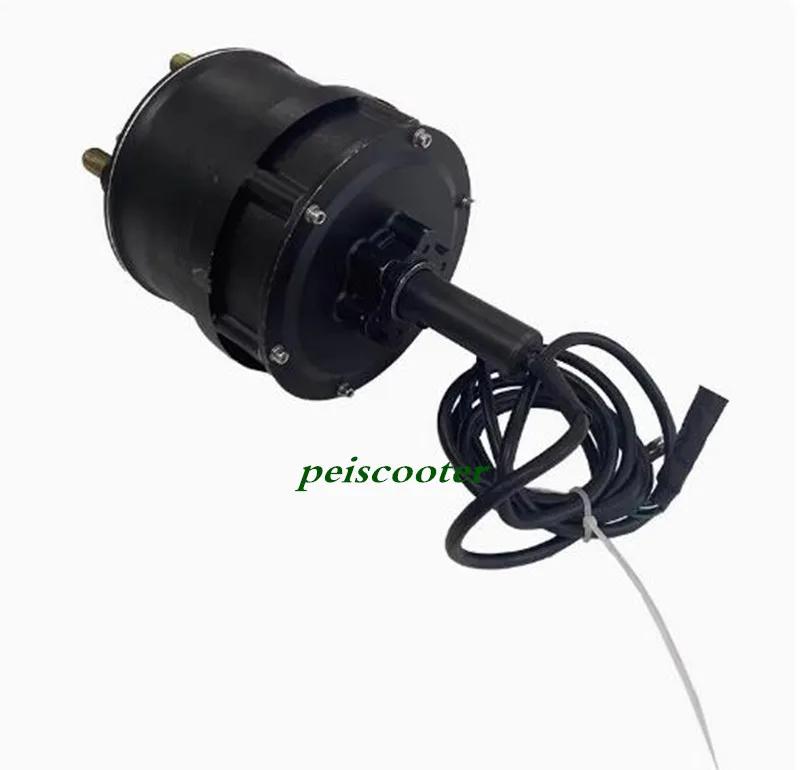

16 inch 16x6.5-8 tyre Single Axle Brushless Gear Low-Speed 200Nm High-Torque Scooter Robot Hub Motor phub-16psddd

16 inch 16x6.5-8 tyre 200Nm torque single shaft brushless gear scooter hub motor

Suitable for electric handcart motors,electric sweeper motors,and garden electric sweeper motors

Low-Speed Power-Torque Hub Motor

has hall sensors

Model:phub-16psddd

Hub motor is Suitable for garden electric handcarts or electric agricultural vehicles

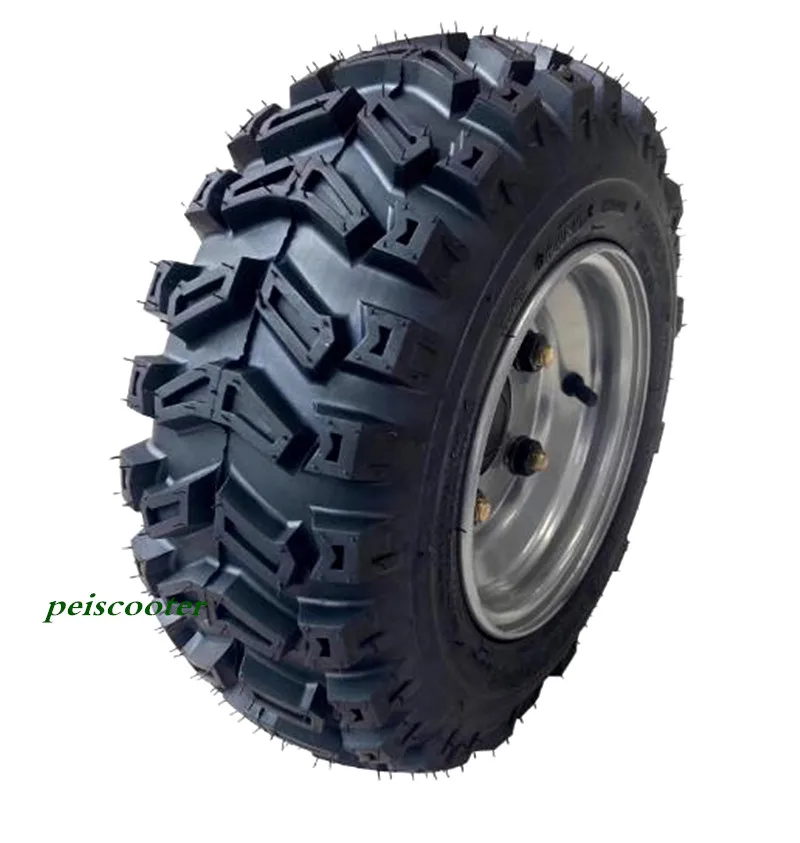

tyre:16*6.5-8

Voltage:24v-48v

speed:200rpm(24v 6km/h,36v 9km/h,48v 12km/h)

Gear ratio: 5:1

Current: 30A

Number of magnetic poles: 10 pairs

Torque:200Nm

Max Power:1000w

Weight: 15kgs

Loading weight:400kgs

Optional upgrades: 1. Add incremental magnetic encoder 2. Add temperature sensor (thermistor) 3. Replace nylon gear to steel gear 4. Replace shaft diameter to 25mm. Please contact customer service for specific requirements
