16 inch solid tire double axles brushless gear ratio 5:1 hand trolley low-speed motor,agricultural motor with controller throttle switch
Model:phub-bba
Suitable for electric handcart motors,electric sweeper motors,and garden electric sweeper motors
Low-Speed Power-Torque Hub Motor
Hub motor is Suitable for garden electric handcarts or electric agricultural vehicles
Tyre: 3.5-10,Non inflatable tires
Voltage:24v,36v,48v
Power: 350w,500w,800w
Gear ratio: 5:1
Torque: 70Nm
Speed:24v 12km/h,36v 18km/h,48v 26km/h
Motor has hall sensors
This kit does not include batteries.You will need to purchase batteries separately,both lead-acid and lithium batteries are acceptable.
The recommended battery capacities are 24V 30Ah, 36V 25Ah, and 48V 20Ah.
We will connect these electronic accessories to the motor and ship them after successful testing,so you don't have to worry about wiring issues.

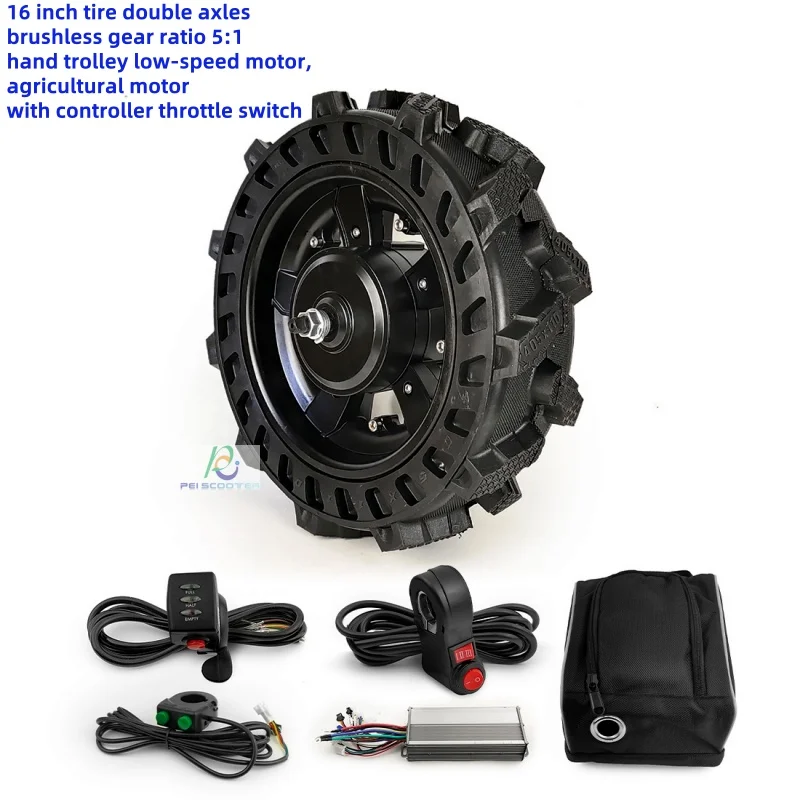

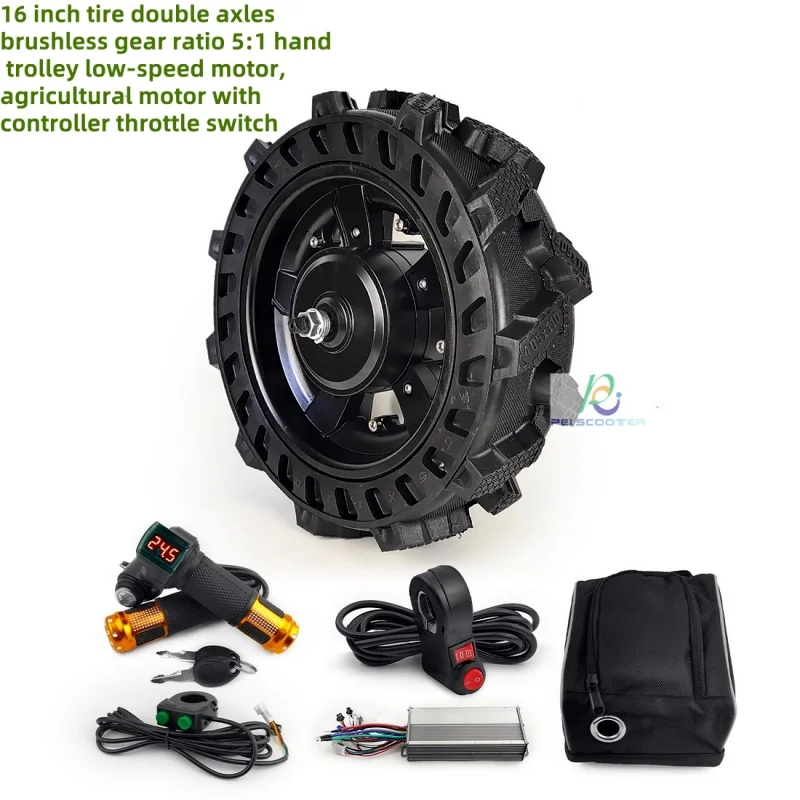

This kit includes:

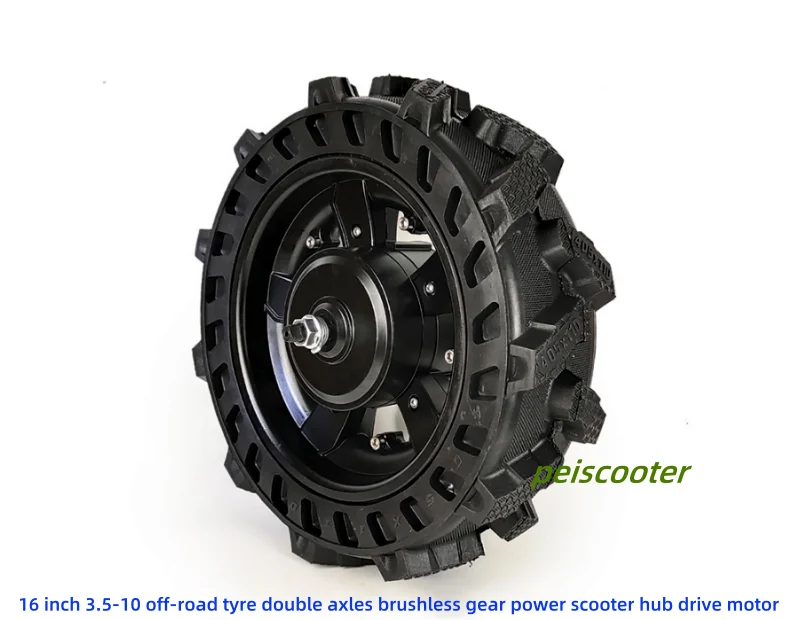

1） 1 x 16 inch brushless gear wheel hub motor (with tire)
2） 1 x motor controller
3） 1 x thumb throttle/key throttle
4） 1 x dual button switch (electric brake and cruise control)
5） 1 x red button switch (reverse gear and 3-speed)
6） 1 x bag
