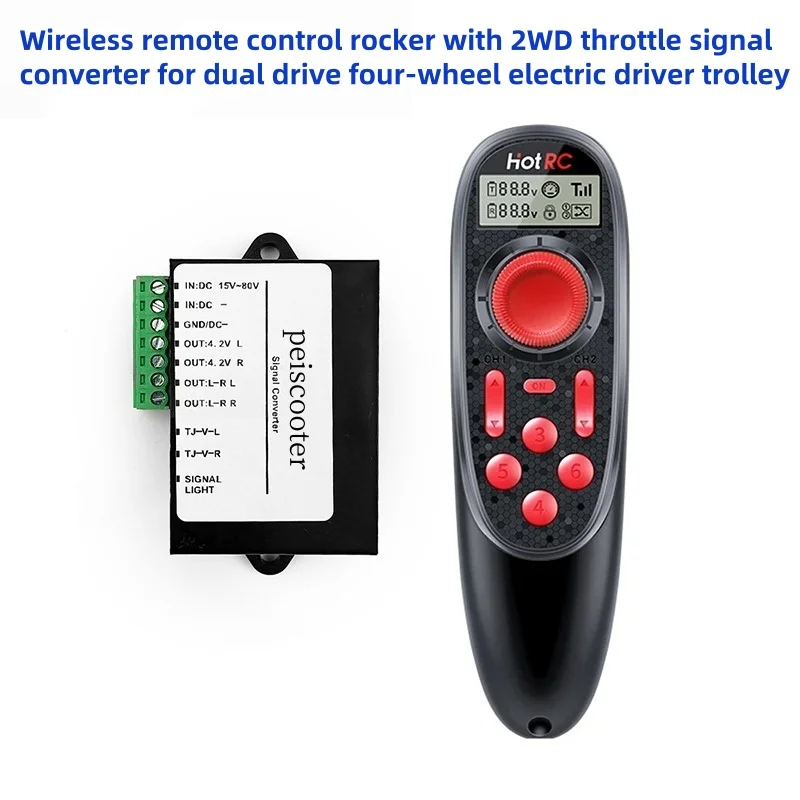

Wireless remote control rocker with 2WD throttle signal converter for dual drive four-wheel electric driver trolley
Model: pps-vv

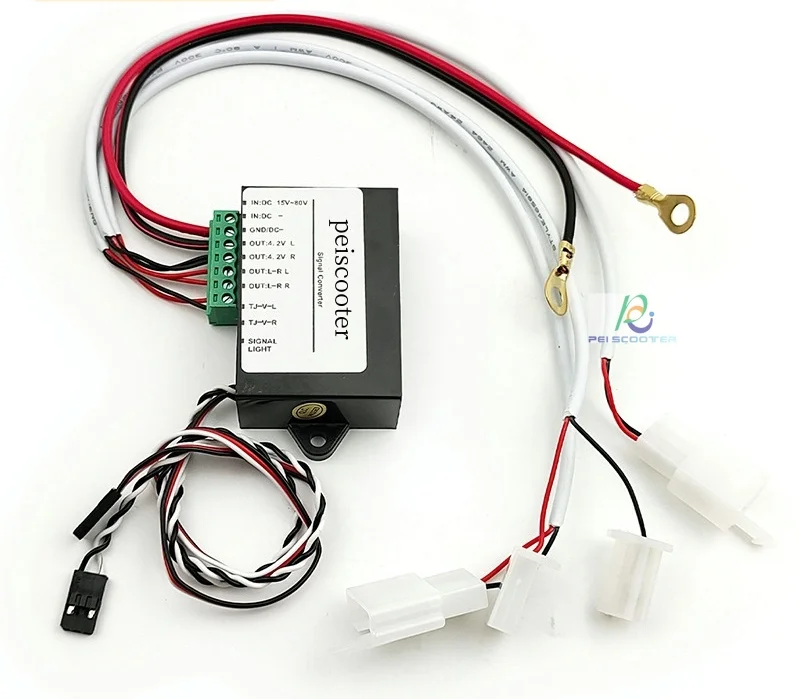

1. This project is a signal converter for dual drive motor kit, which can convert the remote control signal to the throttle signal, thus achieving the motor speed control via wireless remote control.
----------------

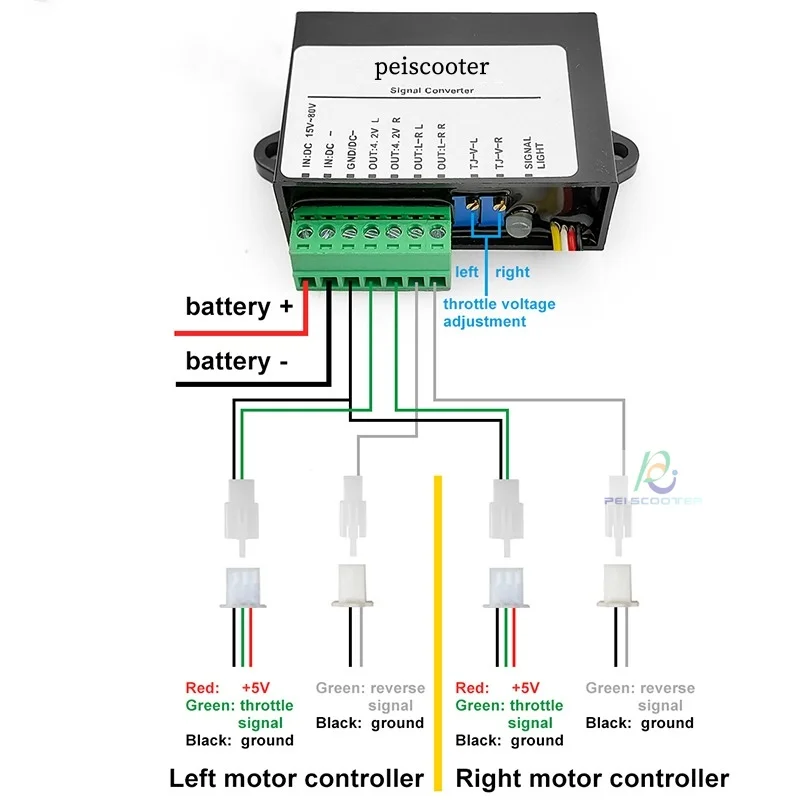

This signal converter should be connected to the controller, not the motor.
----------------
If the controller has a "reverse" plug, then this signal converter can make the motor reverse, so the use of two controllers can make the motor not only forward and backward, but also turn left and right.
----------------
The input voltage of the signal converter should be between 15V and 80V, and the brushless controller and brushless controller can be connected, regardless of the power of the controller.
----------------
The output throttle voltage of the signal converter is maximum 4.2V, but some controllers only accept maximum 3.8V, then please adjust the throttle voltage of the converter to 3.7V, otherwise when you push the throttle to the maximum, the motor will stop working.
Weight: 0.1 kg
Channel: 6CH
RF range: 2.4GHz ISM (2.4005-2.483.5GHz)
RF power:<100mW
Modulation: GFSK
Spread spectrum: FHSS
Response speed: PWM: ≤ 20ms
RF distance: 300 meters from the ground
Receiver sensitivity:<-97dBm
Transmitter voltage: DC 5V
Battery: 1200mAh rechargeable battery (built-in)

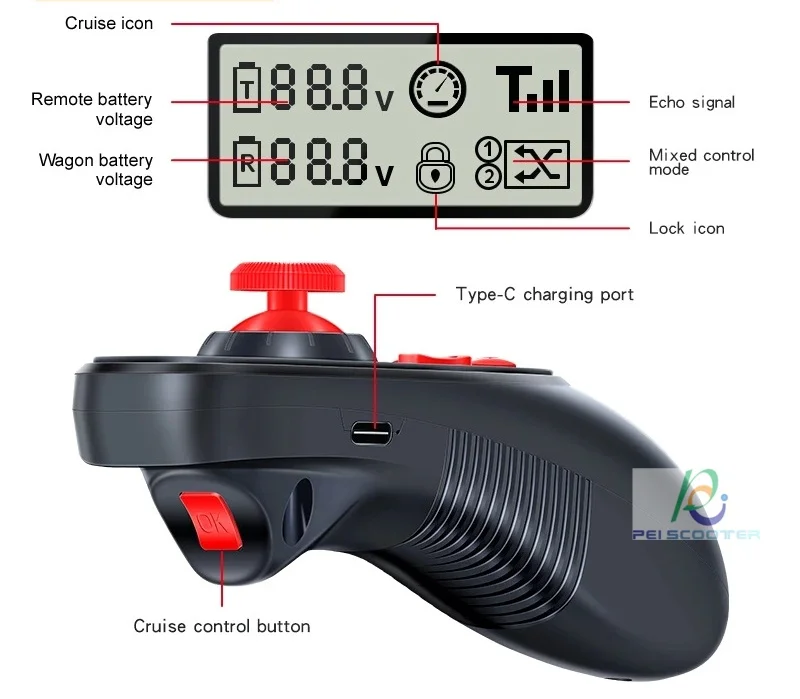

This remote control lever can control two motors to move forward, backward, left turn, right turn, and cruise.
