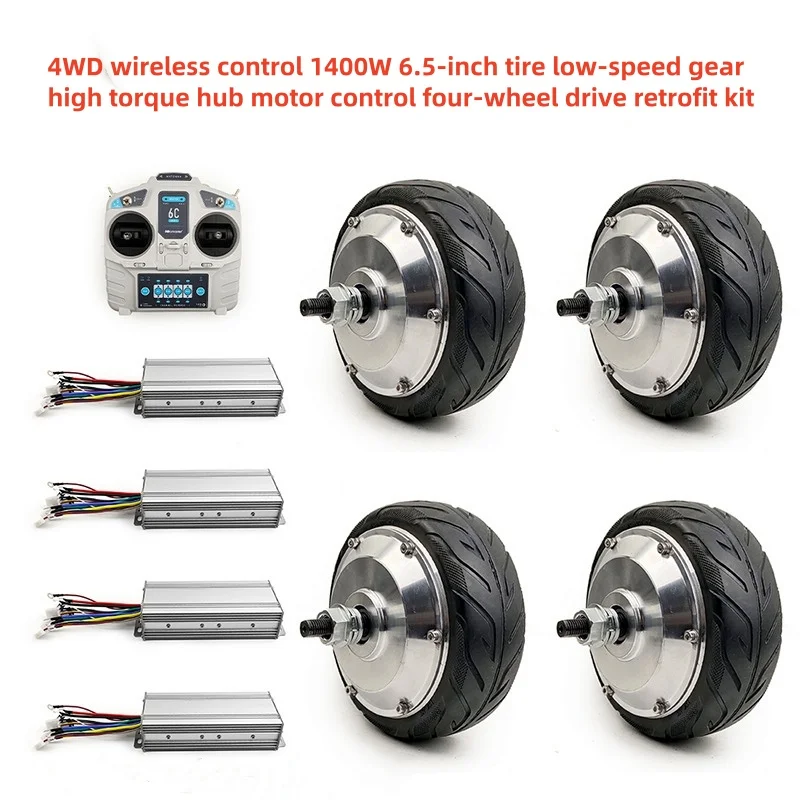

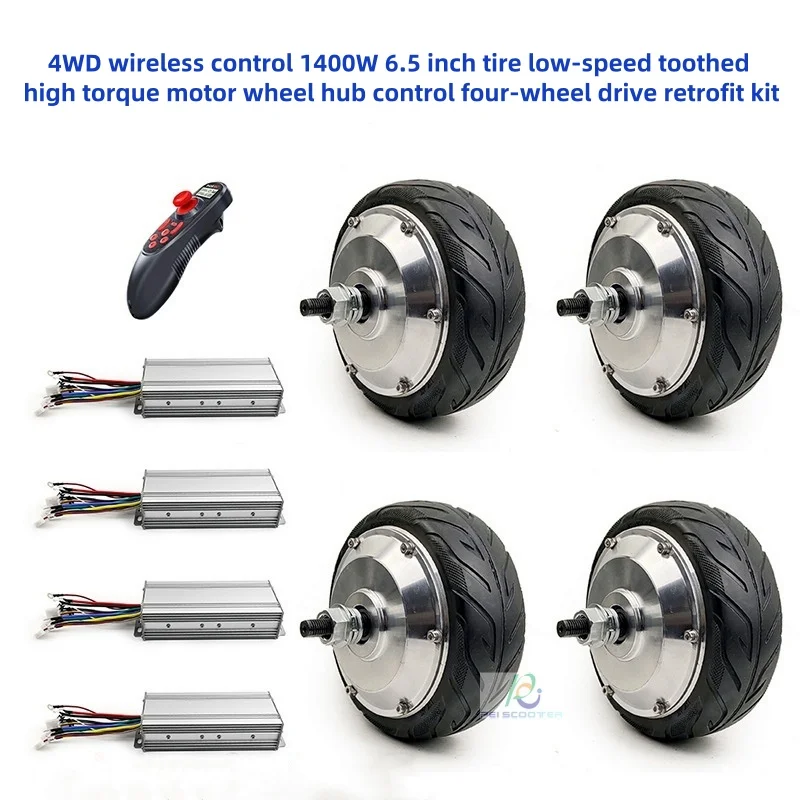

The kit includes the following accessories:
1) 4 * 6.5 inch motor

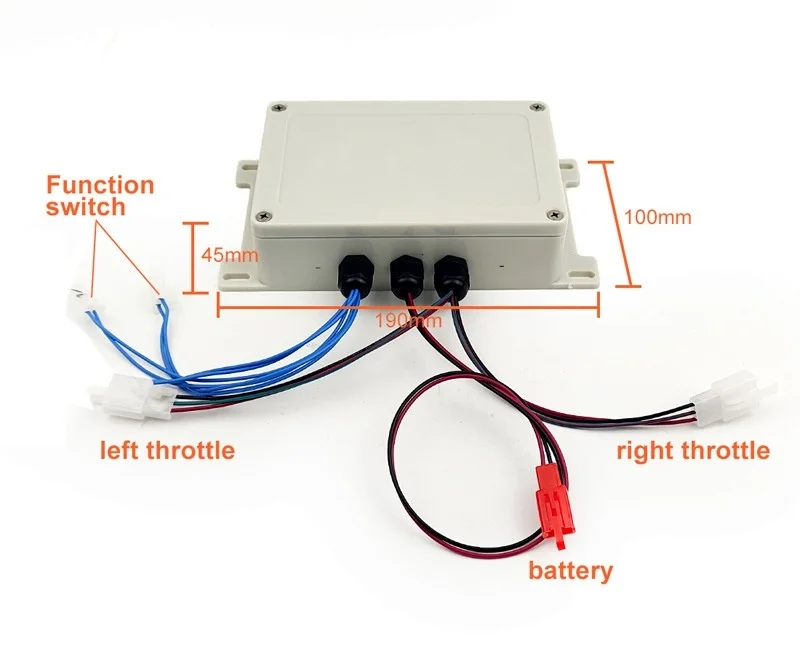

2) 1 set of four-wheel drive wireless control system

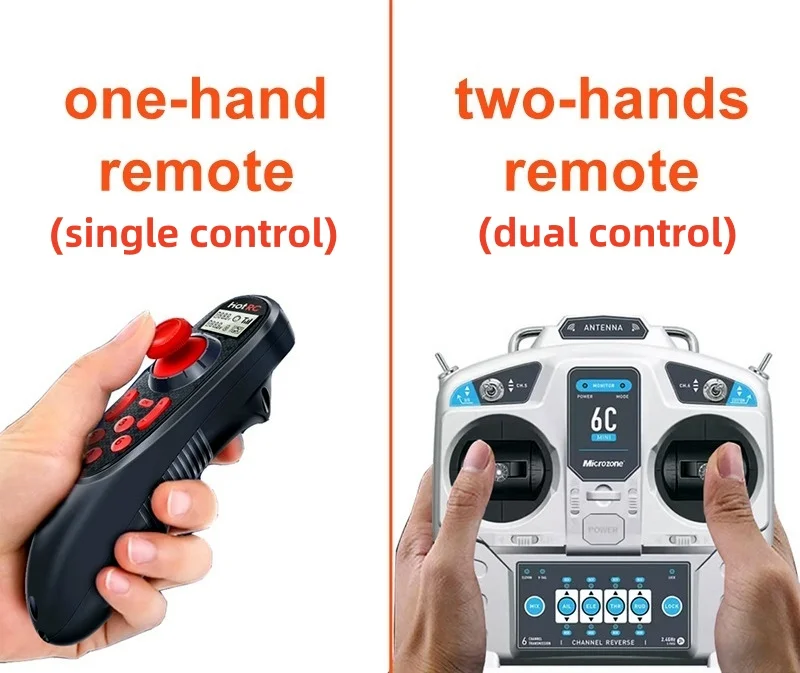

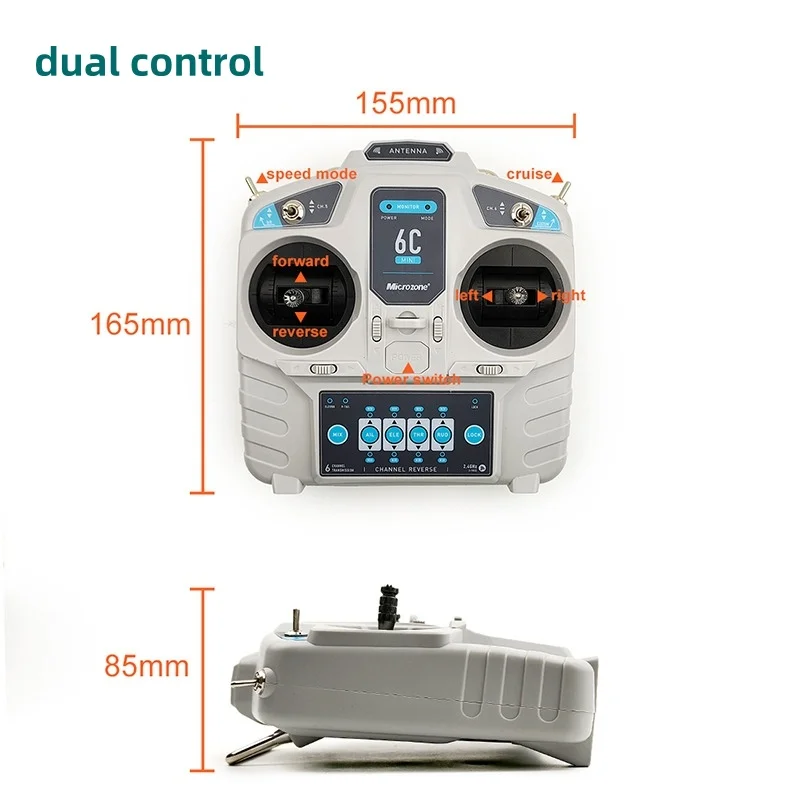

3) 1 * Remote control (single or dual handed)

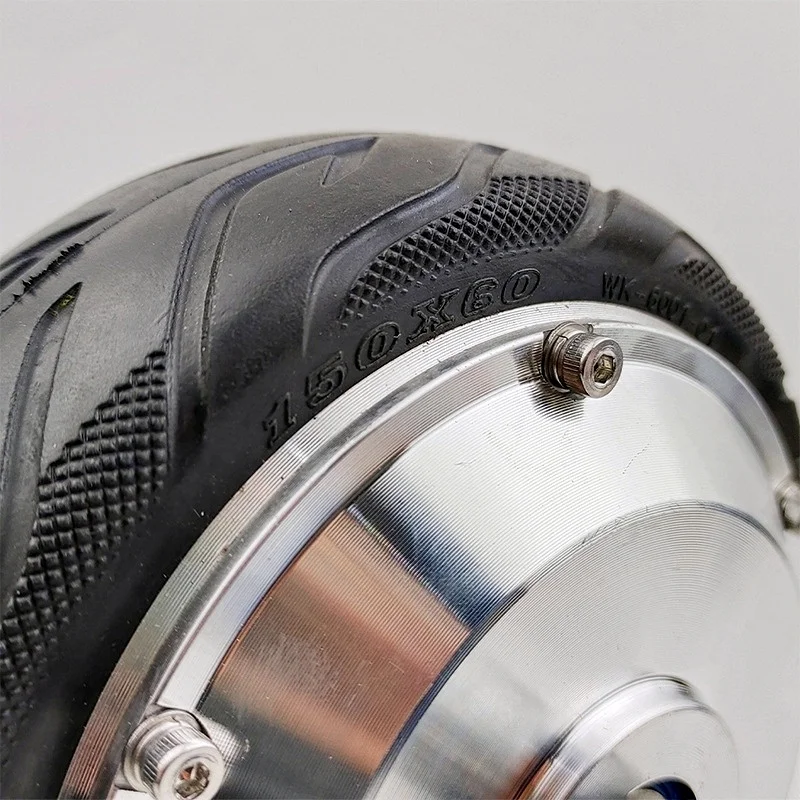

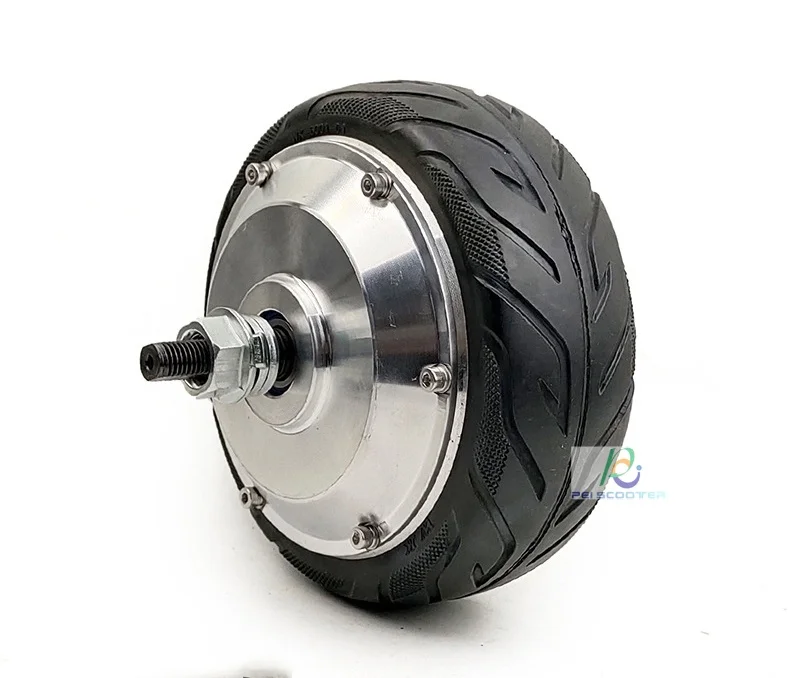

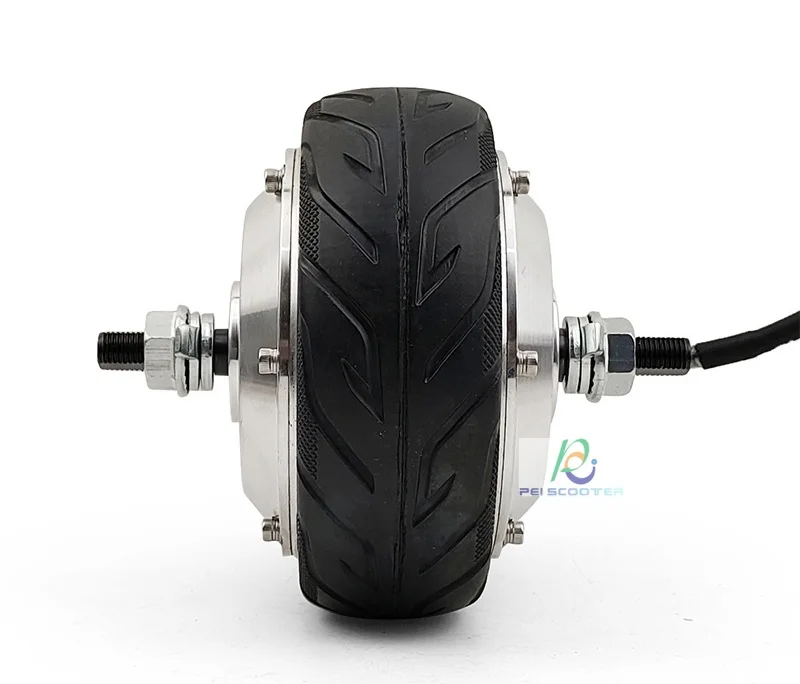

This is a 6.5 inch brushless gear wheel hub motor system for 4 wheels electric carts

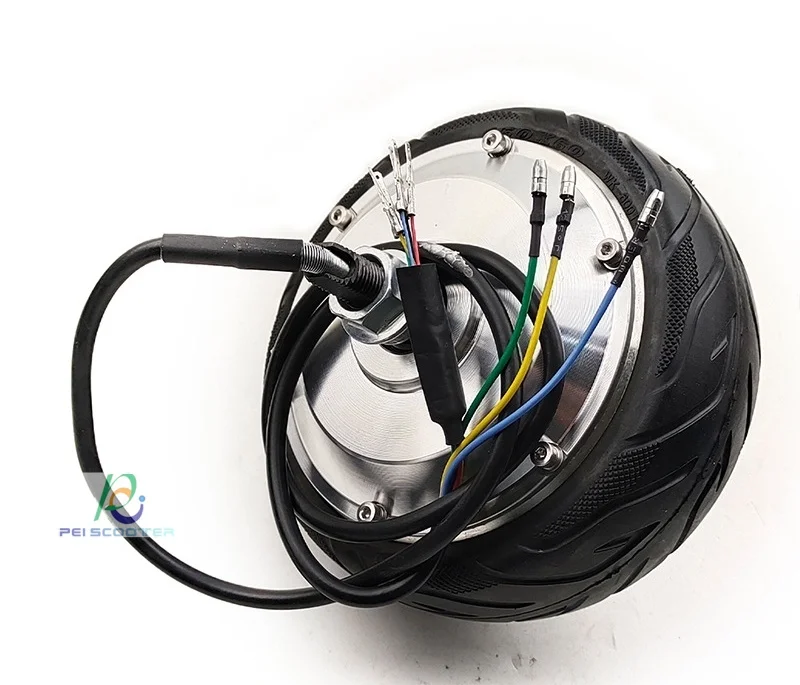

The Hall sensor motor has a total of 8 wires.
Rated power of a single motor: 350W
Single motor rated load: 100kg
Maximum torque of a single motor: 30Nm
Speed: 5km/h (24V), 7km/h (36V), 10km/h (48V)
Fork size: 105mm
Single motor weight: 3.55kg
Gear ratio: 1:5
Please note that:
1）. This kit is suitable for low-speed vehicles,where the motor speed is slow but the torque is high,so it is not suitable for high-speed vehicles project,If you don't know what motor to use,please feel free to ask me.

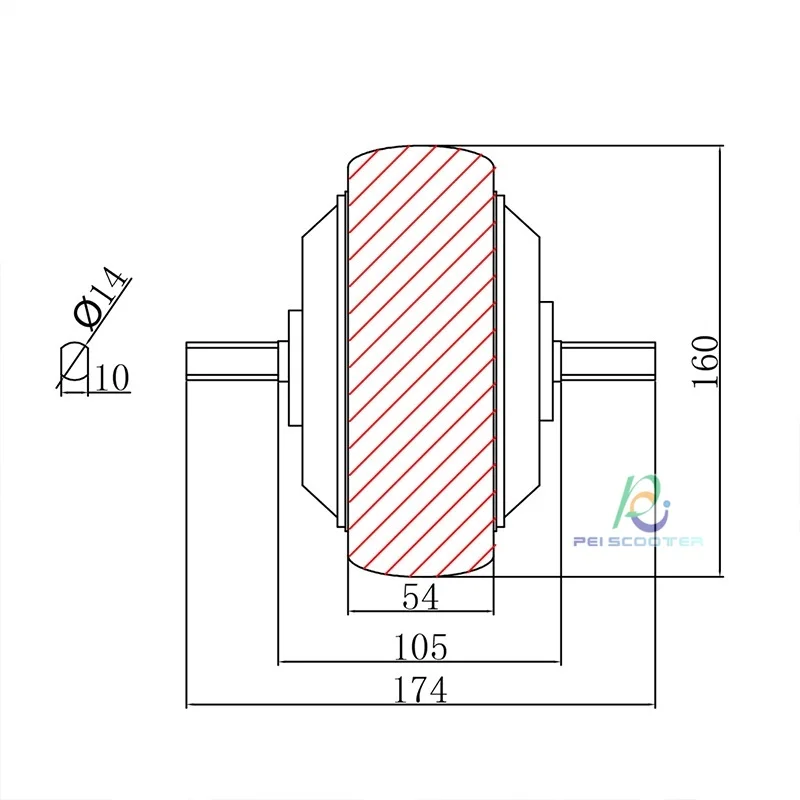

2）. The width of the motor wheel hub is approximately 105mm,so the width inside the front fork of your vehicle should exceed 105mm. Please confirm this.
3）. The load weight is 400kg.
4) The difference between 24V, 36V,and 48V lies in the operating current.If you want to ride longer,I recommend the 36V and 48V.
5）. This kit does not include batteries.You will need to purchase batteries separately,both lead-acid and lithium batteries are acceptable.
Everything is okay,I recommend 24V 15Ah,36V 12Ah,and 48V 10Ah battery capacities.
6）. In order to install this motor wheel onto your scooter,you may need to unfold the front fork of the scooter and drill holes in the axle holes of the scooter.Please confirm that you can perform this operation.
